EliteLiner™ PTFE Liner Free-extruded (FE)

EliteLiner™ Etched PTFE Liner FE/OTW

Choosing the Right Liner for Your Next Project

EliteLiner™  PTFE Liner Series

EliteLiner™ Free-Extruded (FE)

EliteLiner™ Over-the-Wire (OTW)

EliteLiner™ Film-Casted (FC)

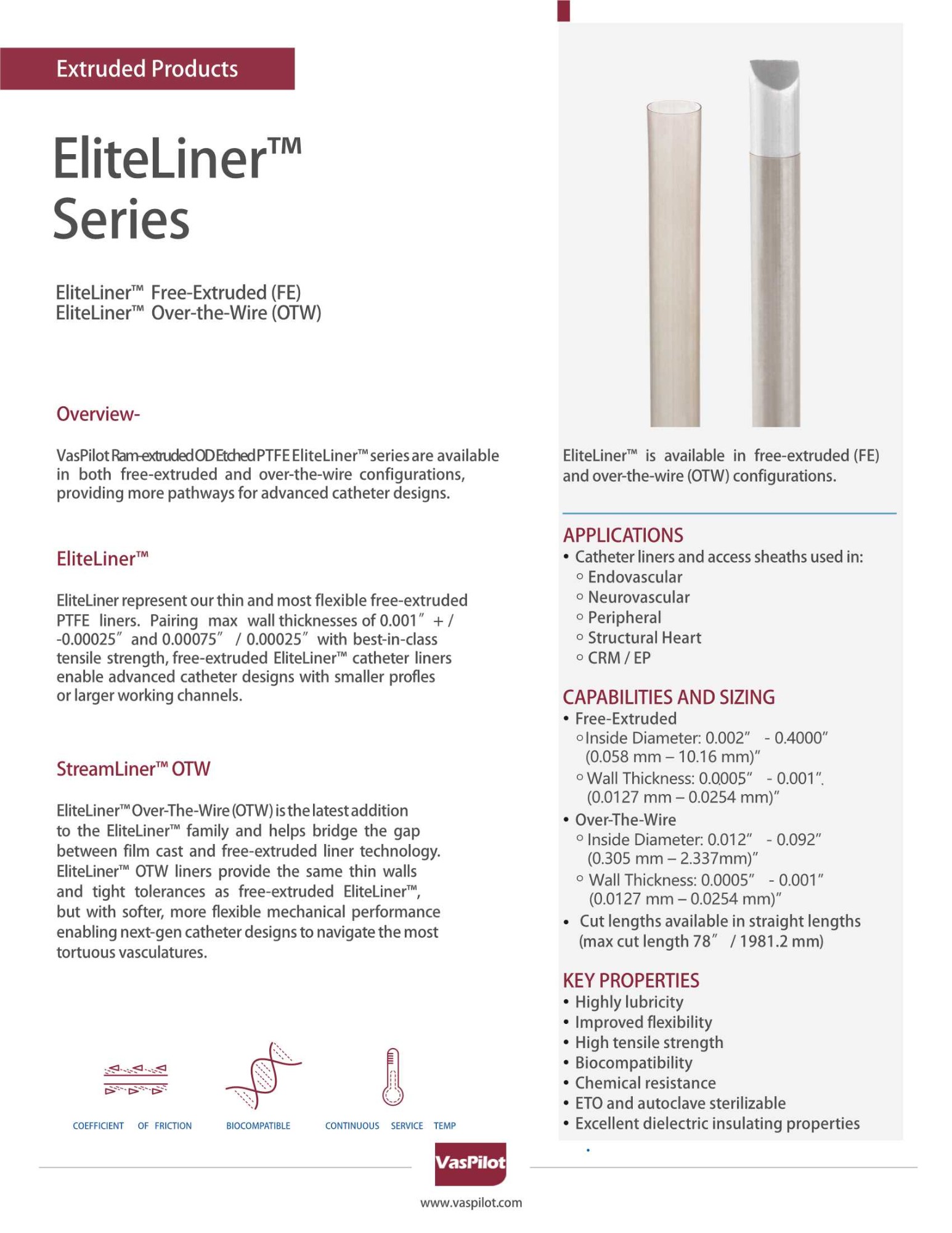

Overview

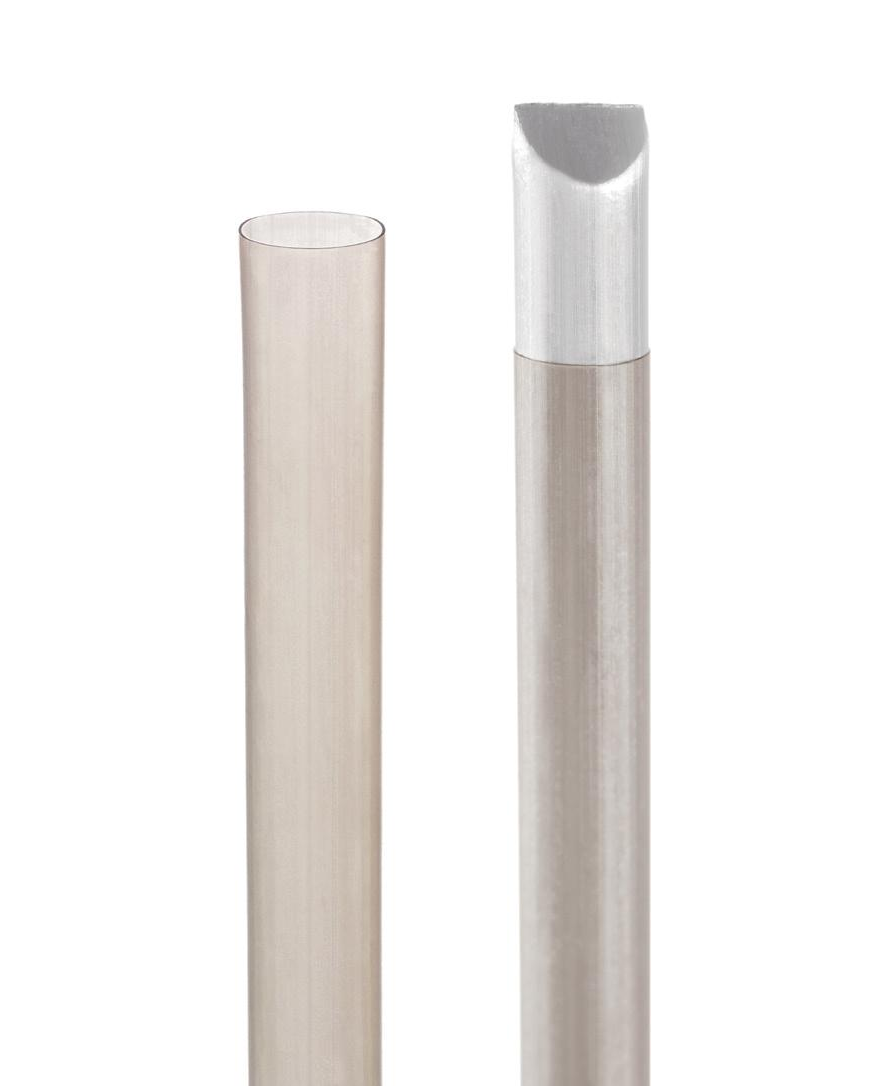

VasPilot Healthcare Ram-extruded OD Etched PTFE EliteLiner™series are available in both free-extruded and over-the-wire configurations, providing more pathways for advanced catheter designs.

EliteLiner™ Free-Extruded (FE)

EliteLiner represent our thin and most flexible free-extruded PTFE liners. Pairing max wall thicknesses of 0.001”+ / -0.00025”and 0.00075” / 0.00025”with best-in-class tensile strength, free-extruded EliteLiner™ catheter liners enable advanced catheter designs with smaller profles or larger working channels.

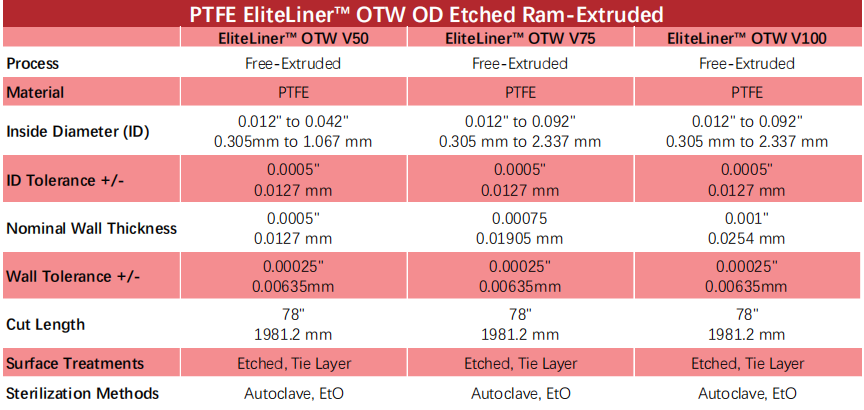

EliteLiner™ Over-the-Wire (OTW)

EliteLiner™ Over-The-Wire (OTW) is the latest addition to the EliteLiner™ family and helps bridge the gap between film cast and free-extruded liner technology.  EliteLiner™ OTW liners provide the same thin walls and tight tolerances as free-extruded EliteLiner™,  but with softer, more flexible mechanical performance enabling next-gen catheter designs to navigate the most tortuous vasculatures.

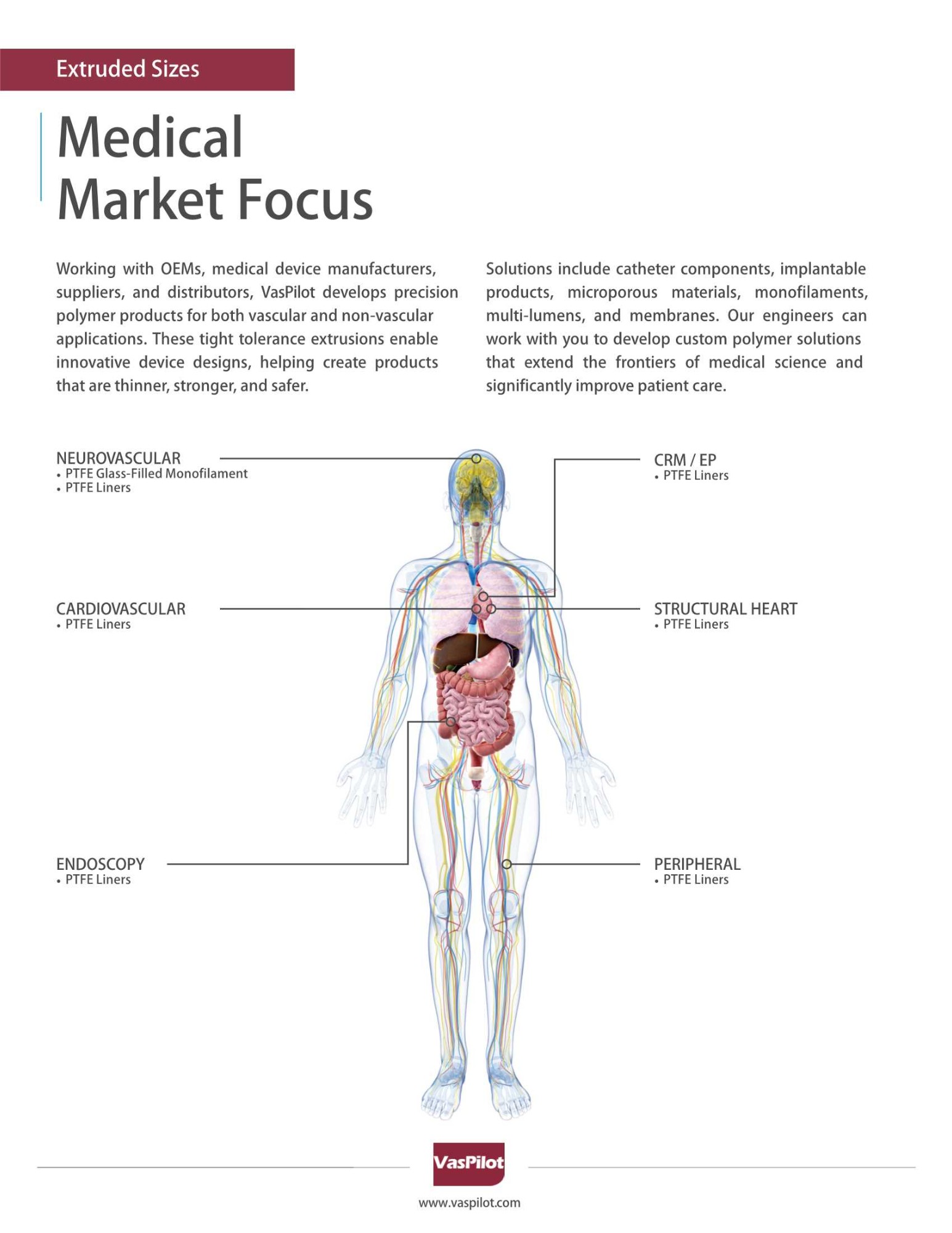

APPLICATIONS

• Catheter liners and access sheaths used in:

• Endovascular

• Neurovascular

• Peripheral

• Structural

• Heart CRM / EP

KEY PROPERTIES

• Highly lubricity

• Improved flexibility

• High tensile strength

• Biocompatibility

• Chemical resistance

• ETO and autoclave sterilizable

• Excellent dielectric insulating properties

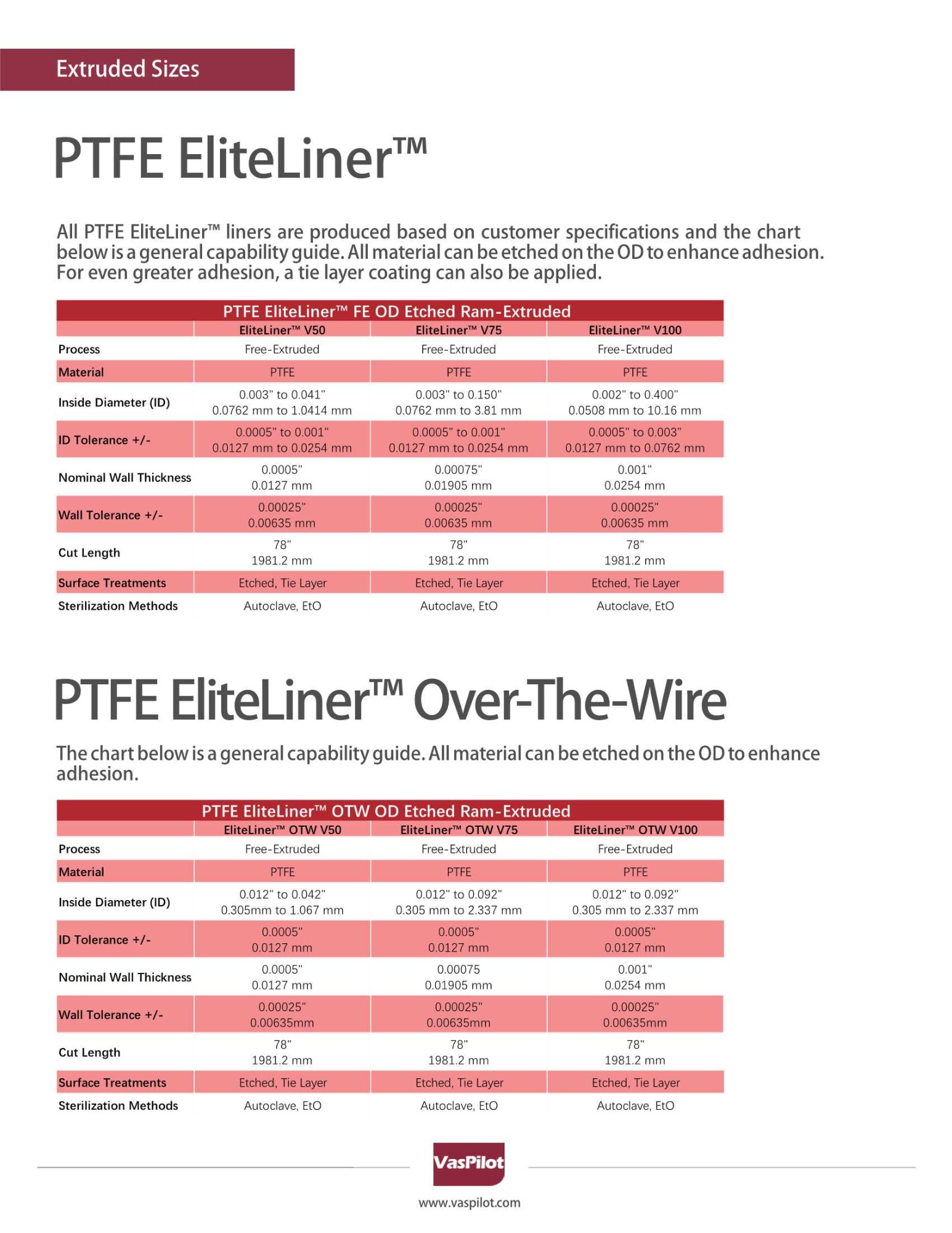

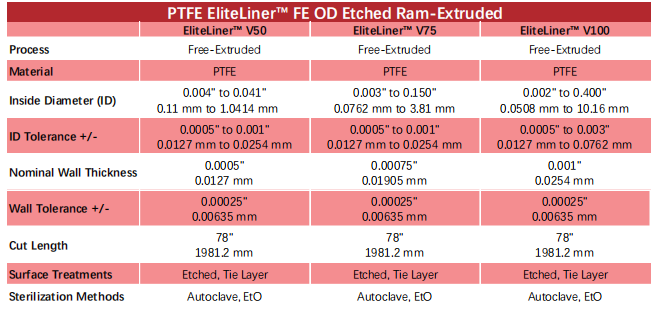

Technical Characteristics

All PTFE EliteLiner™ liners are produced based on customer specifications and the chart  belowis ageneral capabilityguide.Allmaterial canbe etchedontheOD toenhance adhesion.  For even greater adhesion, a tie layer coating can also be applied.

Higher Performance

Thin-walled Catheter Liners

Putting customers at heart of everything we are doing  now, inspiring compassion toward one another, and  relentlessly pursuing perfection.
